Hiding and publishing applications using XenDesktop 7.7 and Powershell

So when creating a delivery group in Studio you have limited capabilities into how we can control who gets access to a certain delivery group or application. NOTE This is not using Smart Access on the Netscaler, this is purely a Citrix Studio feature

. We have for instance filtering on users

And after we have created the delivery group we also have the option to define access rules, and as by default there are two rules that are created pr delivery group.

One rule that allows access using Access Gateway and one for direct connections using Storefront. So what if we need more customization options ? Enter PowerShell for Citrix…

First before doing anything we need to import the Citrix module in Powershell,

asnp citrix.*

Then we use the command Get-BrokerAccessPolicyRule (by default there are two rules for each delivery group. one called NAME_AG and one called NAME_Direct. The AG one is used for access via Netscaler Gateway, the other for direct to Storefront.

From this OS_AG Policy we can see that it is enabled, and allowedconnections are configured to be via Netscaler Gateway. And that it is filtered on Domain users.

We can see from the other policy, OS_Direct that it is set to enabled and that it is for connections notviaAG.



So how do we hide the delivery group for external users? The simples way is to set the accesspolicy true for AG connections to disable.

Set-BrokerAccessPolicyRule -name OS_AG -Enabled $false

Via Netscaler

Via Storefront

Or what if we want to exclude it for certain Active Directory User Group? For instance if there are some that are members of many active directory groups but are not allowed access to external sessions.

Set-BrokerAccessPolicyRule -Name OS_AG-ExcludedUserFilterEnabled $True -ExcludedUsers «TEST\Domain Admins»

This will disable external access to the delivery group for alle members of Domain Admins, even if they are allowed access by another group membership.

#citrix, #powershell, #xendesktop

Storefront 3.1 Technical Preview and configuration options

With the release of Storefront 3.1, Citrix made alot of options which were earlier only available in PowerShell or a configfile available in the GUI, which makes alot more sense since WebInterface has always had alot of options available in the GUI. Now I was a bit dazzled with the numerous options that are available, so what do they all mean?? Hence this post which is used to explain what the different options do, and even what error messages that bit appear because of them.
First of let’s explore the store options in Storefront.

Store Options

User Subscription (This defines if users are allowed to Subscribe to applications or if applications are being mandatory)

For instance Self-service store (GUI Changes to this)

Mandatory Store (GUI Changes to this)

Kerberos Delegation (Allows ut to use Kerberos Constrained Delegation from StoreFront to Controllers) http://docs.citrix.com/en-us/storefront/3-1/configure-authentication-and-delegation/sf-configure-kcd.html

Optimal HDX Routing (Defines if ICA traffic should be routed to Netscaler Gateway even if users are going directly to the StoreFront) We can define a Gateway and attach it to a Farm/Controller, so if we have multiple controllers on different geographic regions we can specify multiple gateways and attach it to the correct delivery controller.

We can also define Direct Access (Which we can enable for each Optimal Gateway) which defines if users which are trying to authenticate internally direct against storefront will also have traffic redirected to the Gateway.

We can also define Optimal Gateway and attach it with Stores which are part of XD 7.7

Citrix Online Integration (Defines if GoTo applications should appear in the Store)

Advertise Store (Defines if the Store should be available to select from Citrix Receiver client, if we choose to hide the Store the only way to access the store is to setup manually, or using provisioning file)

Advanced Settings (Address Resolution Type: Defines which type of address the XML service will respond to Storefront with, by default it is DNS based return, or we can change this to IPv4)

Allow font smoothing: Defines if font smoothing should be enabled in the ICA session

Allow Session Reconnect: Also known as Workspace control, which defines if users can reconnect to existing sessions without restart applications

Allow special folder redirection: Defines if \Document & \Desktops on the local computer should be used in the redirected session. By default the servers profile \Documents \Desktop folder are used

Time-out: Define how long time it should go before the connection times out.

Enable Desktop Viewer: Defines if the Desktop Viewer should be visible in the connection

Enable Enhanced Enumeration: If we have a Storefront configured with mulitple stores, Storefront will contact these Stores in sequencial so if there are alot of resouces this might take some time. With Enhanced Enumeration, Storefront will contact these Stores in Parralell

Maximum Concurrent enumerations: How many concurrent enumeration connections to the Store resources, by default this is 0 which means unlimited

Override ICA client name: Overrides the default ICA client name

Require token consistency: Validates authenticaiton attempts on the Netscaler Gateway and on the Storefront Server, this must be enabled if we want to use Smart Access. This is typically disabled if we want to disable authentication on the Netscaler and do authentication directly to the Storefront server http://support.citrix.com/article/CTX200066

Server Communication attempts: How many times Storefront should try to communicate with a Controller before it marks it at down (default: 1)

Next we also have web site receiver configuration in Storefront

Receiver Experience (If we should use the regular Green bubble theme or using the unified experience) Disabling classic experience will also give other options such as configuring apperance as well.

Authentication methods (Defines what kind of authentications we can use against Storefront)

Website Shortcuts

If you wish to add Storefront to another web portal using for instance as an iFrame(will be shown as this)
you need to enter the URL which is allowed to connect to Storefront as an iFrame in the WebSite Shourtcuts.

Deploy Citrix Receiver (what kind of Receiver should Storefront offer to the authenticated user)

And if we choose install locally we have a number of options

Session settings (How long a session is active before it times out against Storefront)

Workspace Control (What should do if a clients is inactive/logs out) Here we can define so that if a user moves from one device to another the user should reconnect to their existing session)

Client interface settings (Here we can define certion options such as, if a desktop should be auto launched, if Desktop viewer should be enabled, if users are allowed to download Receiver configuraiton from within Receiver for web, and also what kind of panes should be default and shown within Receiver for web)

Advanced settings

 Enable Fiddler Tracing: Enables use of fiddler between Receiver for web and other storefront services. Loopback must also be disable.

Enable Folder view: If folders should be used in Receiver for web

Enable loopback communication: Storefront uses 127.0.0.1 adapter for communication between Receiver for web and other storefront services

Enable protcol handler: Enables use of client detection in Google Chrome

Enable strict transport security: Enables the use of HSTS

ICA file cache expiry: The amount of seconds before an ICA file should be stored in memory

Icon resolution: Default pixel size of an application

Loopback port when using HTTP: Which port should be used for communicaiton with loopback adapter for other storefront services

Prompt for untrusted shortcuts: Prompt the user for permissions to launch apps shortcuts from sites that have not been directly setup as trusted.

Resource details:

Strict transport security policy duration: Time policy for HSTS

No last but not least there are some new interesting features on the authentication site, first of there is the password expiration option under Password Options

When a user logs inn it will look like this.

Another new option is the Password validation feature, in a regular scenario we might now have storefront in the same domain as Xenapp or XenDesktop services, and we might not always be able to setup Active directory trusts, instead we need to setup XML service-based authentication, which will allow Storefront to communicate with XML instead of Active Directory and leave the autheticaiton process to the DDCs. Which is typically the case if we have multi-tenant enviroments.

Another option that we have is when defining Gateways in Storefront, we can now define if Gateways should have the role of HDX routing only, Authenticaiton only or both. If we choose HDX routing only, we cannot use this gateway for remote access for the store.

As we see here (It does not show) The reason for that is that if we want a regular ICA proxy setup to work with Receiver for web and regular receiver we need to configure auth at the Gateway, which means that we need to define auth at the Gateway to be able to use it for remote access against the store.

The latest COOL features which is now part of the GUI Storefront is the ability to do User farm mapping. Which in essence Is used to assign a group of users to a selection of Sites/farms. So if we have multiple farms we can define a certain group of users which should be mapped to that farm. This is done on the controller settings

Then choose map users to controllers

Define AD group

Then define which controllers it should contact to display resources.

And voila! alot of cool new features in the TP which I makes it to GA soon!
There are some bugs in the GUI but I think we have a fully WI replacement!

#citrix, #optimal-gateway, #storefront, #storefront-3-1-technical-preview, #xendesktop

Setting up XenDesktop 7.7 against Microsoft Azure

Starting of the new year with a long awaited feature on my part, setting up integration between XenDesktop and Microsoft Azure which is now a supported integration in 7.7 which was released now a week ago. This integration allow us to provision virtual machines directly from Studio. NOTE: Important to note however that XenDesktop as of now only supports V1 (Classic) virtual machines in Azure, so no Resource Groups yet, which might make it a bit confiusing for some but ill try to cover it as good as I can.

But a good thing with this is that we can either setup XenDesktop in a hybrid setting where we have the controller and studio running from our local infrastructure or that we are running everything in Azure which is also another setup.

Now after setting up XenDesktop 7.7 you have a new option when setting up a new connection now, you need to get publish information from Azure before continuing this wizard, that can be downloaded from https://manage.windowsazure.com/publishsettings

Important that when downloading a publish profile that the subcribtion contains a virtual network (Classic virtual networking) within the region we choose later in the wizard, or else you will not be able to continue the wizard.

This can be viewed/created from the new portal under the “classic” virtual network objects

Now after verifying the connection profile you will get an option of different regions available within the subscription.

After choosing a region the wizard will list out all available virtual networks within the region, and will by default choose a subnet which has valid IP-range setup.
NOTE: The other subnet is used for Site-to-site VPN and should not be chosed in the wizard.

This part just defines which virtual networks the provisioned machines are going to use. So after we are done with the wizard we can get started with the provisioning part. Now in order to use MCS to create a pool of virtual machines in Azure we need to create an master image first. This can be done by creating a virtual machine within Azure, installing the VDA, doing any optimization, installing applications and doing sysprep and shutting down the virtual machines. Then we need to run PowerShell to capture the image. The reason for this is that the portal does not support capturing images in a state called specialized.

NOTE: A simple way to upload the VDA agent to the master image virtual machine is by using for instance Veeam FASTSCP for Azure, which uses WinRM to communicate and be able to download and upload files to the virtual machine.

DONT INSTALL ANYTHING SQL related on the C: drive (Since it uses a read/write cache which might end up with a corrupt database, and don’t install anything on the D: drive since this is a temporary drive and will be purged during a restart.

A specialized VM Image is meant to be used as a “snapshot” to deploy a VM to a good known point in time, such as checkpointing a developer machine, before performing a task which may go wrong and render the virtual machine useless.  It is not meant to be a mechanism to clone multiple identical virtual machines in the same virtual network due to the Windows requirement of Sysprep for image replication.

ImageName = the image name after the convertion

Name = virtual machine name

ServiceName = Cloud service name

Also important that the vmimage HAS NOT other data disks attached to it as well. After the command is done you can view the image within the Azure Portal and you can see that is has the property specialized

Also with this you also now have a master image which you just need to allocate and start when the need for a new update to the master image is needed.

So now that the image is in place, we can start to create a machine catalog. When creating a catalog, Studio will try to get all specialized images from the region that we selected

Then we can define what kind of virtual machines that we can create.

NOTE: Citrix supports a max of 40 virtual machines as of now)

Basic: Has a limit of 300 IOPS pr disk

Standard: Has a limit of 500 IOPS pr disk, newer CPU.

We can also define multiple NIC to the virtual machines, if we have any and select what kind of virtual network it should be attached to. Note that the wizard also defines computer accouts in Active Directory like regular MCS setup, so in order to do that we need to have either a S2S VPN setup so the virtual machines can contact AD or that we have a full Azure setup( site to site setup here –> https://azure.microsoft.com/en-us/documentation/articles/vpn-gateway-site-to-site-create/)  After that we can finish the wizard and Studio will start to provision the virtual machines.

NOTE: This takes time!

Eventually when the image is finished creating the virtual machine you will be able to access the virtual machines from a IP from within the Azure region. Stay tuned for a blogpost, involving setting up Azure and Netscaler integration with 7.7

#azure, #citrix, #microsoft-azure, #xendesktop, #xendesktop-7-7

Office365 on Terminal Servers done right

So this is a blogpost based upon a session I had at NIC conference, where I spoke about how to optimize the delivery of Office365 in a VDI/RSDH enviroment.

There are multiple stuff we need to think / worry about. Might seem a bit negative, but that is not the idea just being realistic

So this blogpost will cover the following subjects

• Federation and sync
• Installing and managing updates
• Optimizing Office ProPlus for VDI/RDS
• Office ProPlus optimal delivery
• Shared Computer Support
• Skype for Buisness
• Outlook
• OneDrive
• Troubleshooting and general tips for tuning
• Remote display protocols and when to use when.

So what is the main issue with using Terminal Servers and Office365? The Distance….

This is the headline for a blogpost on Citrix blogs about XenApp best pratices

So how to fix this when we have our clients on one side, the infrastructure in another and the Office365 in a different region ? Seperated with long miles and still try to deliver the best experience for the end-user, so In some case we need to compromise to be able to deliver the best user experience. Because that should be our end goal Deliver the best user experience

User Access

First of is, do we need to have federation or just plain password sync in place? Using password sync is easy and simple to setup and does not require any extra infrastructure. We can also configure it to use Password hash sync which will allow Azure AD to do the authentication process. Problem with doing this is that we lose a lot of stuff which we might use on an on-premises solution

• Audit policies
• Existing MFA (If we use Azure AD as authentication point we need to use Azure MFA)
• Delegated Access via Intune
• Lockdown and password changes (Since we need change to be synced to Azure AD before the user changes will be taken into effect)

NOTE: Now since I am above average interested in Netscaler I wanted to include another sentence here, for those that don’t know is that Netscaler with AAA can in essence replace ADFS since Netscaler now supports SAML iDP. Some important issues to note is that Netscaler does not support • Single Logout profile; • Identity Provider Discovery profile from the SAML profiles. We can also use Netscaler Unified Gateway with SSO to Office365 with SAML. The setup guide can be found here

https://msandbu.wordpress.com/2015/04/01/netscaler-and-office365-saml-idp-setup/

NOTE: We can also use Vmware Identity manager as an replacement to deliver SSO.

Using ADFS gives alot of advantages that password hash does not.

• True SSO (While password hash gives Same Sign-on)
• If we have Audit policies in place
• Disabled users get locked out immidietly instead of 3 hours wait time until the Azure AD connect syng engine starts replicating, and 5 minutes for password changes.
• If we have on-premises two-factor authentication we can most likely integrate it with ADFS but not if we have only password hash sync
• Other security policies, like time of the day restrictions and so on.
• Some licensing stuff requires federation

So to sum it up, please use federation

Initial Office configuration setup

Secondly, using the Office suite from Office365 uses something called Click-to-run, which is kinda an app-v wrapped Office package from Microsoft, which allows for easy updates from Microsoft directly instead of dabbling with the MSI installer.

In order to customize this installer we need to use the Office deployment toolkit which basically allows us to customize the deployment using an XML file.

The deployment tool has three switches that we can use.

setup.exe /download configuration.xml

setup.exe /configure configuration.xml

setup.exe /packager configuration.xml

NOTE: Using the /packager creates an App-V package of Office365 Click-To-run and requires a clean VM like we do when doing sequencing on App-V, which can then be distributed using existing App-V infrastructure or using other tools. But remember to enable scripting on the App-V client and do not alter the package using sequencing tool it is not supported.

The download part downloads Office based upon the configuration file here we can specify bit editions, versions number, office applications to be included and update path and so on. The Configuration XML file looks like this.

<Configuration>

<Add OfficeClientEdition=»64″ Branch=»Current»>

<Product ID=»O365ProPlusRetail»>

<Language ID=»en-us»/>

</Product>

</Add>

<Updates Enabled=»TRUE» Branch=»Business» UpdatePath=»\\server1\office365″ TargetVersion=»16.0.6366.2036″/>

<Display Level=»None» AcceptEULA=»TRUE»/>

</Configuration>

Now if you are like me and don’t remember all the different XML parameters you can use this site to customize your own XML file –> http://officedev.github.io/Office-IT-Pro-Deployment-Scripts/XmlEditor.html

When you are done configuring the XML file you can choose the export button to have the XML file downloaded.

If we have specified a specific Office version as part of the configuration.xml it will be downloaded to a seperate folder and storaged locally when we run the command setup.exe /download configuration.xml

NOTE: The different build numbers are available here –> http://support2.microsoft.com/gp/office-2013-365-update?

When we are done with the download of the click-to-run installer. We can change the configuration file to reflect the path of the office download

<Configuration> <Add SourcePath=»\\share\office» OfficeClientEdition=»32″ Branch=»Business»>

When we do the setup.exe /configure configuration.xml path

Deployment of Office

The main deployment is done using the setup.exe /configure configuration.xml file on the RSDH host. After the installation is complete

Shared Computer Support

<Display Level="None" AcceptEULA="True" />
<Property Name="SharedComputerLicensing" Value="1" />

In the configuration file we need to remember to enable SharedComputerSupport licensing or else we get this error message.

If you forgot you can also enable is using this registry key (just store it as an .reg file)

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office\15.0\ClickToRun\Configuration]
«InstallationPath»=»C:\\Program Files\\Microsoft Office 15»
«SharedComputerLicensing»=»1

Now we are actually done with the golden image setup, don’t start the application yet if you want to use it for an image. Also make sure that there are no licenses installed on the host, which can be done using this tool.

cd ‘C:\Program Files (x86)\Microsoft Office\Office15’
cscript.exe .\OSPP.VBS /dstatus

This should be blank!

Another issue with this is that when a user starts an office app for the first time he/she needs to authenticate once, then a token will be stored locally on the %localappdata%\Microsoft\Office\15.0\Licensing folder, and will expire within a couple of days if the user is not active on the terminalserver. Think about it, if we have a large farm with many servers that might be the case and if a user is redirected to another server he/she will need to authenticate again. If the user is going against one server, the token will automatically refresh.
NOTE: This requires Internet access to work.

And important to remember that the Shared Computer support token is bound to the machine, so we cannot roam that token around computers or using any profile management tool.

But a nice thing is that if we have ADFS setup, we can setup Office365 to automatically activate against Office365, this is enabled by default. So no pesky logon screens.

Just need to add the ADFS domain site to trusted sites on Internet Explorer and define this settings as well

Automatic logon only in Intranet Zone

Which allows us to basically resolve the token issue with Shared Computer Support

Optimizing Skype for Buisness

So in regards to Skype for Buisness what options do we have in order to deliver a good user experience for it ? We have four options that I want to explore upon.

• VDI plugin
• Native RDP with UDP
• Natnix PCoIP
• Native ICA (w or without audio over UDP)
• Local app access
• HDX Optimization Pack 2.0

Now the issue with the first one (which is a Microsoft plugin is that it does not support Office365, it requires on-premises Lync/Skype) another issue that you cannot use VDI plugin and optimization pack at the same time, so if users are using VDI plugin and you want to switch to optimization pack you need to remove the VDI plugin

ICA uses TCP protcol works with most endpoints, since its basically running everyone directly on the server/vdi so the issue here is that we get no server offloading. So if we have 100 users running a video conference we might have a issue If the two other options are not available try to setup HDX realtime using audio over UDP for better audio performance. Both RDP and PCoIP use UDP for Audio/Video and therefore do not require any other specific customization.

But the problems with all these are that they make a tromboning effect and consumes more bandwidth and eats up the resources on the session host

Local App from Citrix access might be a viable option, which in essence means that a local application will be dragged into the receiver session, but this requires that the enduser has Lync/Skype installed. This also requires platinum licenses so not everyone has that + at it only supports Windows endpoints…

The last and most important piece is the HDX optimization pack which allows the use of server offloading using HDX media engine on the end user device

And the optimization pack supports Office365 with federated user and cloud only users. It also supports the latest clients (Skype for buisness) and can work in conjunction with Netscaler Gateway and Lync edge server for on-premises deployments. So means that we can get Mac/Linux/Windows users using server offloading, and with the latest release it also supports Office click-to-run and works with the native Skype UI

So using this feature we can offload the RSDH/VDI instances from CPU/Memory and eventually GPU directly back to the client. And Audio/video traffic is going to the endpoint directly and not to the remote session

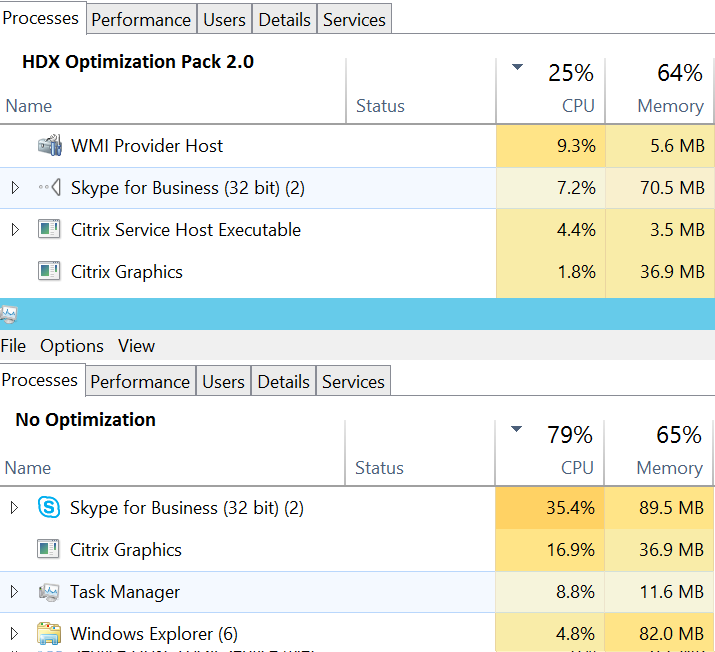

Here is a simple test showing the difference between running Skype for buisness on a terminal server with and without HDX Optimization Pack 2.0

Here is a complete blogpost on setting up HDX Optimization Pack 2.0 https://msandbu.wordpress.com/2016/01/02/citrix-hdx-optimization-pack-2-0/

Now for more of the this part, we also have Outlook. Which for many is quite the headache…. and that is most because of the OST files that is dropped in the %localappdata% folder for each user. Office ProPlus has a setting called fast access which means that Outlook will in most cases try to contact Office365 directly, but if the latency is becoming to high, the connection will drop and it will go and search trough the OST files.

Optimizing Outlook

Now this is the big elefant in the room and causes the most headaches. Since Outlook against Office365 can be setup in two modes either using Cached mode and the other using Online mode. Online modes uses direct access to Office365 but users loose features like instant search and such. In order to deliver a good user experience we need to compromise, the general guideline here is to configure cached mode with 3 months, and define to store the OST file (Which contains the emails, calender, etc) and is typically 60-80% than the email folder) on a network share. Since these OST files are by default created in the local appdata profile and using streaming profile management solutions aren’t typically a good fit for the OST file.

. Important to note that Microsoft supports having OST files on a network share, IF! there is adequate bandwidth and low latency… and only if there is one OST file and the users have Outlook 2010 SP1

NOTE: We can use other alternatives such as FSLogix, Unidesk to fix the Profile management in a better way.

Ill come back to the configuration part later in the Policy bits. And important to remember is to use Office Outlook over 2013 SP1 which gives MAPI over HTTP, instead of RCP over HTTP which does not consume that much bandwidth.

OneDrive

In regards to OneDrive try to exclude that from RSDH/VDI instances since the sync engine basically doesnt work very well and now that each user has 1 TB of storagee space, it will flood the storage quicker then anything else, if users are allowed to use it. Also there is no central management capabilities and network shares are not supported.

There are some changes in the upcoming unified client, in terms of deployment and management but still not a good solution.

You can remove it from the Office365 deployment by adding  this in the configuration file.

<ExcludeApp ID=»Groove» />

Optimization and group policy tuning

Now something that should be noted is that before installing Office365 click-to-run you should optimize the RSDH sessions hosts or the VDI instance. A blogpost which was published by Citrix noted a 20% in performance after some simple RSDH optimization was done.

Both Vmware and Citrix have free tools which allow to do RSDH/VDI Optimization which should be looked at before doing anything else.

Now the rest is mostly doing Group Policy tuning. Firstly we need to download the ADMX templates from Microsoft (either 2013 or 2016) then we need to add them to the central store.

We can then use Group Policy to manage the specific applications and how they behave. Another thing to think about is using Target Version group policy to manage which specific build we want to be on so we don’t have a new build each time Microsoft rolls-out a new version, because from experience I can tell that some new builds include new bugs –> https://msandbu.wordpress.com/2015/03/09/trouble-with-office365-shared-computer-support-on-february-and-december-builds/

Now the most important policies are stored in the computer configuration.

Computer Configuration –> Policies –> Administrative Templates –> Microsoft Office 2013 –> Updates

Here there are a few settings we should change to manage updates.

• Enable Automatic Updates
• Enable Automatic Upgrades
• Hide Option to enable or disable updates
• Update Path
• Update Deadline
• Target Version

These control how we do updates, we can specify enable automatic updates, without a update path and a target version, which will essentually make Office auto update to the latest version from Microsoft office. Or we can specify an update path (to a network share were we have downloaded a specific version) specify a target version) and do enable automatic updates and define a baseline) for a a specific OU for instance, this will trigger an update using a built-in task schedulerer which is added with Office, when the deadline is approaching Office has built in triggers to notify end users of the deployment. So using these policies we can have multiple deployment to specific users/computers. Some with the latest version and some using a specific version.

Next thing is for Remote Desktop Services only, if we are using pure RDS to make sure that we have an optimized setup.  NOTE: Do not touch if everything is working as intended.

Computer Policies –> Administrative Templates –> Windows Components –> Remote Desktop Services –> Remote Desktop Session Host –> Remote Session Enviroment

• Limit maximum color depth (Set to16-bits) less data across the wire)
• Configure compression for RemoteFX data (set to bandwidth optimized)
• Configure RemoteFX Adaptive Graphics ( set to bandwidth optimized)

Next there are more Office specific policies to make sure that we disable all the stuff we don’t need.

User Configuration –> Administrative Templates –> Microsoft Office 2013 –> Miscellaneous

• Do not use hardware graphics acceleration
• Disable Office animations
• Disable Office backgrounds
• Disable the Office start screen
• Supress the recommended settings dialog

User Configuration –> Administrative Templates  –>Microsoft Office 2013 –> Global Options –> Customizehide

• Menu animations (disabled!)

Next is under

User Configuration –> Administrative Templates –> Microsoft Office 2013 –> First Run

• Disable First Run Movie
• Disable Office First Run Movie on application boot

User Configuration –> Administrative Templates –> Microsoft Office 2013 –> Subscription Activation

• Automatically activate Office with federated organization credentials

Last but not least, define Cached mode for Outlook

User Configuration –> Administrative Templates –> Microsoft Outlook 2013 –> Account Settings –> Exchange –> Cached Exchange Modes

• Cached Exchange Mode (File | Cached Exchange Mode)
• Cached Exchange Mode Sync Settings (3 months)

Then specify the location of the OST files, which of course is somewhere else

User Configuration –> Administrative Templates –> Microsoft Outlook 2013 –> Miscellanous –> PST Settings

• Default Location for OST files (Change this to a network share

Network and bandwidth tips

Something that you need to be aware of this the bandwidth usage of Office in a terminal server enviroment.

Average latency to Office is 50 – 70 MS

• 2000 «Heavy» users using Online mode in Outlook
About 20 mbps at peak

• 2000 «Heavy» users using Cached mode in Outlook
About 10 mbps at peak

• 2000 «Heavy» users using audio calls in Lync About 110 mbps at peak

• 2000 «Heavy» users working Office using RDP About 180 mbps at peak

Which means using for instance HDX optimization pack for 2000 users might “remove” 110 mbps of bandwidth usage.

Microsoft also has an application called Office365 client analyzer, which can give us a baseline to see how our network is against Office365, such as DNS, Latency to Office365 and such. And DNS is quite important in Office365 because Microsoft uses proximity based load balancing and if your DNS server is located elsewhere then your clients you might be sent in the wrong direction. The client analyzer can give you that information.

(We could however buy ExpressRoute from Microsoft which would give us low-latency connections directly to their datacenters, but this is only suiteable for LARGER enterprises, since it costs HIGH amounts of $$)

But this is for the larger enterprises which allows them to overcome the basic limitations of TCP stack which allow for limited amount of external connection to about 4000 connections at the same time. (One external NAT can support about 4,000 connections, given that Outlook consumes about 4 concurrent connections and Lync some as well)

Because Microsoft recommands that in a online scenario that the clients does not have more then 110 MS latency to Office365, and in my case I have about 60 – 70 MS latency. If we combine that with some packet loss or adjusted MTU well you get the picture

Using Outlook Online mode, we should have a MAX latency of 110 MS above that will decline the user experience. Another thing is that using online mode disables instant search. We can use the exchange traffic excel calculator from Microsoft to calculate the amount of bandwidth requirements.

Some rule of thumbs, do some calculations! Use the bandwidth calculators for Lync/Exchange which might point you in the right direction. We can also use WAN accelerators (w/caching) for instance which might also lighten the burden on the bandwidth usage. You also need to think about the bandwidth usage if you are allow automatic updates enabled in your enviroment.

Troubleshooting tips

As the last part of this LOOONG post I have some general tips on using Office in a virtual enviroment. This is just gonna be a long list of different tips

• For Hyper-V deployments, check VMQ and latest NIC drivers
• 32-bits Office C2R typically works better then 64-bits
• Antivirus ? Make Exceptions!
• Remove Office products that you don’t need from the configuration, since this add extra traffic when doing downloads and more stuff added to the virtual machines
• If you don’t use lync and audio service (disable the audio service! )
• If using RDSH (Check the Group policy settings I recommended above)
• If using Citrix or VMware (Make sure to tune the polices for an optimal experience, and using the RSDH/VDI optimization tools from the different vendors)
• If Outlook is sluggish, check that you have adequate storage I/O to the network share (NO HIGH BANDWIDTH IS NOT ENOUGH IF STORED ON A SIMPLE RAID WITH 10k disks)
• If all else failes on Outlook (Disable MAPI over HTTP) In some cases when getting new mail takes a long time try to disable this, used to be a known error)

Remote display protocols

Last but not least I want to mention this briefly, if you are setting up a new solution and thinking about choosing one vendor over the other. The first of is

• Endpoint requirements (Thin clients, Windows, Mac, Linux)
• Requirements in terms of GPU, Mobile workers etc)

Now we have done some tests, which shown the Citrix has the best feature across the different sub protocols

• ThinWire (Best across high latency lines, using TCP works over 1800 MS Latency)
• Framehawk (Work good at 20% packet loss lines)

While PcoIP performs a bit better then RDP, I have another blogpost on the subject here –> https://msandbu.wordpress.com/2015/11/06/putting-thinwire-and-framehawk-to-the-test/

#citrix, #fcbars, #garyspants, #lcfc, #netscaler, #office365, #punchflix, #slbbvb, #xendesktop

XenDesktop 7.5 and Windows Azure Pack Gallery Image

Yesterday Citrix announced a Tech Preview of a XenDesktop 7.5 Gallery image for Azure Pack.
For those so not familiar with Azure Pack, this is a portal which builds upon System Center (and some other tools) do deliver an Azure-like portal where you can setup some of the features like Azure does. I’ve blogged about it before if you want to know more about it here –> https://msandbu.wordpress.com/2013/06/28/azure-pack-configuration-for-windows-server-2012-r2/

Now a Gallery Image is where a end-user want to provision a new-service, he can either choose custom create of choose a finished Image from the gallery.
(A copy from the Azure Gallery)

Now imaging giving customers the ability to provision XenDestkop resources as they need it. Or just for the IT-guys to have a streamlined process of doing it. This is where the XenDesktop gallery image comes in.

Now what do we need to setup this image ?

• Windows Azure Pack
• Server 2012 R2 image sysprepped
• XenDesktop 7.5 Media
• The XenDesktop Gallery Image

Then we need to do alot of changes, first we need to create a new VHD which will contain the setup files. First go into disk management and create a new VHD (Which needs to be 4GB) which is called XenDesktop.vhd

After you created the VHD, mount it using Explorer and copy the content from the 7.5 ISO to the VHD file.
When you are done with this, go into the Virtual Machine Manager console, the into the library node and then click import physical resources.

Then choose “add resources”, select the XenDesktop.vhd then select which library server and destionation to store the VHD file. After it is finished importing right-click on it and choose properties. The set Famility to CitrixXenDesktopMedia, and then set the release to 7.5.0.0 and lastly set the operating system type to “none”

Then Click OK, after we are done with this we need to modify our operating system disk image. Does this need to be VHD ? YES! Azure Pack does not support VHDX. ) and it needs to be fixed)

Right-click on the sysprepped VHDX file and choose Properties, from there alter the Famility to which type of operating system it is running, in my case its
”Windows Server 2012 R2 Datacenter”

and set the release to 1.0.0.0 and then of course change the Operating System to Windows Server 2012 R2 Datacenter as well.

Click OK after you are done. Next we need to “tag” the virtual disks so that the gallery item can use to find the vhds.

Open up Virtual Machine Manager PowerShell console. Run the following command,

$myVhd = Get-SCVirtualHardDisk | where {$_.Name -match ‘sysprepped’} “Make sure that the name matches the name of your VHD file)

$tags = $myvhd.tag
$tags += «WindowsServer2012»
Set-scvirtualharddisk -virtualharddisk $myVHD -Tag $tags

$myVhd.Tag (This spits out the info so you can see that the tag is applied)

Now we need to import the Gallery image extention to the Library share, this can either be done by using the GUI or the PowerShell.

PowerShell

$libraryShare = Get-SCLibraryShare | Where-Object {$_.Name -eq ‘MSSCVMMLibrary’}
$resextpkg = «C:\Users\administrator.CONTOSO\Downloads\XenDesktopRole.resextpkg» (Here the path needs to be changed to where the resextpkg is located)
Import-CloudResourceExtension -ResourceExtensionPath $resextpkg -SharePath $libraryShare

Next we need to enter Azure Pack – admin site. Go into VM Clounds and Gallery and choose Import.

From here add the XenDesktopRole.resdefpkg, and verifies that it actually imports.

Next we need to make this item, public and add it do some different plans.

Go into the item and choose Make Public, then assign to some plans. If you don’t have any plans you need to create some from the plans menu pane within the Admin site.

So what now ? Open the Azure Pack site as and tenant which is enabled for the plan and choose from Gallery and see for yourself.



Then click next (From here the OS “sysprepped” image should appear and you need to have a virtual network in place before you can continue on here .

Next we can define which role this VM should have, and we can setup a XenDeskTop Controller but we still need to create the site after VM creation. But we can also deploy StoreFront, LicenseServer, Session Host and Desktop Director

Pretty cool!

#azure-pack, #citrix, #system-center, #xendesktop

Citrix Connector for System Center Configuration manager 7.5 walkthrough

Earlier today, Citrix released their updated System Center Configuration Manager connector to XenDesktop 7.5. It can be downloaded from here –> http://www.citrix.com/downloads/xendesktop/product-software/xendesktop-and-xenapp-75-connector-for-sccm.html note that it requires an mycitrix account in order to download it.

So what does it do ? well a couple of things. Mostly it’s about pushing software out to regular clients and servers including XenApp/XenDesktop servers where the clients might get the XD/XA version of an application. You can also use it to publish applications directly to XD/XA from Configuration Manager which makes it easy to maintain a consistant software library.

Now there are a couple of components here that are needed.

• Citrix Connector Service (This does the syncing, publishing and orchestration jobs between Configuration Manager site and the XA/XD site)

• Citrix DT handler (This component is needed on VDA servers/clients and on managed clients which you want to use the integration between) NOTE: There are different DT handlers for clients and VDA agents

So in my case I installed the Citrix Connector Service on my site server since it is a demo-enviroment. Now the installation is pretty straight forward.

Install both the service and the console extension

Enter a service account for the connector serivce

New in this release is the ability to define maintance windows, in case you want automated deployment to VDA agents.

Now after the installation is finished there are a few things which should be done first.

Make sure that Configuration Manager client is installed on the VDA agents you want to use with this deployment. Now you should create an application of the DT handler and deploy out to all VDA agents.

• Using the following installation paramters msiexec /i «CitrixDTHandler_x64.msi» /q
• Also all applications you want to publish should be pre-created and added to Configuration manager.

Now in my case, I have installed the DThandler on 1 VDA server, and have created 7-zip as an application in Configuration Manager. When we open Configuration Manager Console we have some new options. First of under Assets and Complliance we have the machine catalogs listed up

First of we need to deploy 7-zip to the machine catalog and VDA agents. After that Configuration Manager has gotten the info that the application has been installed

We can go ahead and do a publication action. Go into Software library and into Citrix Applications Publications andchoose Create Publication.

Then we run trough the wizard

Now the connector has been added a nifty new feature which check if all the prerequistes are in place.

So after we have done the wizard and the syncronization is complete the application will appear in the XenDesktop studio.

So now we have successfully installed 7-zip on a VDA agent and successfully published it from Configuration Manager. So this means that the application is available as an resource if the user starts up Citrix Receiver or logs into StoreFront.

Now onto the next option, what if we want users to get applications from Software Center or the Application Catalog (But they can start a citrix session if we want them to?) this is part of the DT handler on the managed clients.

Now let’s deploy 7-zip from Configuration Manager to some managed clients, first of we need to create a new deployment type which references the newly published applications. in the the deployment type choose XenApp

Under publishing you need to choose the existing Citrix deployment that was published earlier.

NOTE: Citrix DT handler needs to be installed on the clients.

Now go trough the wizard and after you are done with the wizard you need to give the XenApp deployment type a lower priority then the other option.

Now after you have created the deployment type and you want to deploy the appliaction you need to choose the clients or the users which are defined in the delivery groups

Now if you head over to the application portal on a managed client with a valid user, the application will appear.

Now if you click this application the configuration manager agent and the DT components will interact and publish the application in the receiver. If you have a valid single-sign-on deployment working on your Xendesktop enviroment you can see that 7-zip is published on the managed clients desktop

this is a quick walkthrough but it gives you the quick overview of what you can use this connector with. You can also integrate it with MCS and PVS, also we can integrate App-V applications. Also important to remember that with XenDesktop 7.5 you can integrate with Configuration Manager for Wake on lan functionality.

#citrix, #configuation-manager-connector, #configuration-manager, #xenapp, #xendesktop

SCVMM and XenApp 6.5 + PVS = Trouble!

Having been involved in a case for a long time now where a partner wanted to use SCVMM with XenApp 6.5 and PVS 7.1 for a customer and it has not been quite as successfull.

Now I wanted to share some notes with PVS and Hyper-V and what the limitations are there at the moment.

• First of it is important to note that PVS 7.1 is the only version of provisioning that supports SCVMM 2012 R2, as the support matrix lists.

http://support.citrix.com/servlet/KbServlet/download/36944-102-708649/CitrixSupportedHypervisors.pdf

• Using PVS with Hyper-V is now functional with PVS 7.1 this requires Legacy adapters in Hyper-V since Legacy adapters are the only NICs in Hyper-V that support PXE boot



• Citrix has implemented a failover mechanism between Legacy and Synthetic which means that the streaming traffic can start from the Legacy adapter and then switch to the synthetic.



• Hyper-V 2012 R2 does support PXE with Sythentic devices with Generation 2 Virtual Machines, but THIS IS NOT SUPPORTED BY CITRIX YET.
• If we for instance are using a VM with two Legacy adapters, Hyper-V will always boot from the last legacy NIC added to the virtual machine, if we are using “Stream VM wizard” in PXE it will add the first NIC in the virtual machine meaning that we get the wrong MAC address in the PVS database
• Hyper-V creates a new NIC GUID when creating a machine from a tempalte unlike Vmware or XenServer which does not.
• Stream VM wizard in PVS creates virtual machines from templates which means that NIC’s on the PVS virtual machines get reinitialized when booting and therefore service stop responding since it delays the network start.
• The only solution to this is to clone machines and then add them manually to PVS like in this CTX article –> http://support.citrix.com/article/CTX128750
• XenDestkop setup wizard in PVS DOES NOT create virtual machines from template, but clones the virtual machine using a set of PowerShell cmdlets.

Hopefully 7.5 has support for Generation 2 Virtual Machines!

#pvs, #xenapp, #xendesktop

XenApp 7.5 the return of XenApp

So after the public announcement Citrix made earlier today, it was clear that they are going to bring back XenApp to life more or less. You can see more about the product here –>

Not quite, even thou it is called XenApp it is still running the XenDesktop FMA architecture beneath. The reason why they are bringing the XenApp name ? because of the brand, since many people are very familiar with the name and the concept it brings. Since many think of XenDesktop as an VDI solution.

It will again be available as the same versions that it was before, Advanced, Enterprise and platinum. Thus meaning the end of XenDesktop app edition (Since this is actually the XenApp functionality) Customers that have XenDesktop App edition have the same functionality as XenApp Enterprise 7.5

So what does XenApp 7.5 bring to the playing field ?

Hybrid Cloud provisioning  – To AWS and Cloudplatform (No Azure here! will come later) gives the ability to provision XenApp servers directly in to the cloud provider.

And for existing XenApp 6.5 customers you have more mobile HDX funcionality to provider an better application delivery to mobile devices.

So for those that were hoping for a full return of XenApp, well it just marketing group that is doing a name change to the existing productline to use its branding to its full potential

So the 7.5 product line is rumored to be released in the summer, is it going to be interesting to see what Project Merlin will bring besides the hybrid cloud provisioning



Also you can see what else is available here, it will be released in March

http://www.citrix.com/products/xenapp/whats-new.html

http://www.citrix.com/products/xendesktop/whats-new.html

#citrix, #xenapp-7-5, #xendesktop

XenDesktop 7.1 TechPreview Service Template

Citrix released yesterday a tech preview of their Service Template for XenDesktop 7.1 for System Center Virtual Machine Manager.
This template allows for rapid and easy deployment of an entire XenDesktop 7 infrastructure, including setup of Director, License Server, Desktop Delivery Controller and Storefront.

It does not by default include Netscaler as part of the that template but that is something we can add to the “mix” later.
the Techpreview of the template can be downloaded from mycitrix here –> https://www.citrix.com/downloads/xendesktop/betas-and-tech-previews/system-center-service-template-tech-preview.html (This requires a valid mycitrix account) it has a template for XenDesktop and for PVS.

ill continue on with the XenDesktop template and show how it is deployed.
The template contains a bunch of PowerShell scripts, XenDesktop 7.1 ISO file and the template file itself, in order to fully setup the template it needs to VMM ISO file and a generalized 2012 VHD file.

After we have downloaded the template file open VMM –>
Then go into Library and Import Template –>

Then point to the extracted XenDesktop folder.
Then choose next, now we need to point the template to the different ISO files and generalized 2012 template.

After that is done and the mappings are correct we can contine on with the importing.

This will take some time since it needs to import the XenDesktop to the library. When we now go into Service Templates we can see XenDesktop listed as an option there. If we right click and choose “Open Designer” we can see how the layout will look like.

Now if we wanted to we could use the Netscaler integration as well to deploy multiple DCC and Storefronts and automatically setup a load balancing of these services as part of the deployment. Lets see how that can be done using the Service Template. (Note that this integration is still not support in 2012 R2) (UPDATED: IT WORKS) but for the purpose of demonstrating how it CAN be done ill show it anyways. So after we have installed the addon and created a VIP template for DCC and one for Storefront we can open the designer again.

Next we can connect the VIP profiles to the different components, one DCC VIP template for DCC and one for Storefront which has different load balancing mechanisms setup.

Now If I where to configure a deployment of this. I can configure the amount of each server I want in order to ensure scailability and redudancy.
When I start the deploy wizard I get a question to define what is my management network.

Here I can define what is the backend of the netscaler and what the VIP addres of the load balancing solution is going to be.

But since the integration between Netscaler and VMM is not functioning in R2 ill need to get back on that in a later post (UPDATE IT WORKS). But if I go into one of the servers I can see the application scripts that are run in order to setup a functional site.

If I for instance have ComTrade installed on Operations Manager in order to have monitoring of my Citrix enviroment I can add this as a Application Configuration in the last step to have a complete, XenDesktop 7 setup with load balanced Netscaler solution and have complete monitoring using Operations Manager.

This is the power of Citrix and Microsoft!

#citrix, #netscaler, #system-center, #virtual-machine-manager, #xendesktop

News from Citrix and Microsoft

Wow this has been a huge day for both Microsoft and Citrix.
First of Microsoft announced today publically that they are making RemoteFX clients for all mobile platforms (Maybe part of the Mohoro DaaS?) Which means that Microsoft VDI and with Storage dedup might make MIcrosoft a better alternative and gain some lost grounds there, because this has been one of Citrix’s best features broad platform support. So about time Microsoft came aboard as well!

Anyhow… Citrix also made an announcent today that they will release XenDesktop 7.1 as of 23th of October, this release will support all of the new platforms that Microsoft will release the 18th great news! That means VDA on Windows 8.1 and Windows Server 2012 R2, and that XenDesktop can leverage all of the SMB features and SCVMM 2012 R2 with MCS.

(Still eager to see the PVS features here)

So that means you can upgrade your infrastructure first and then Citrix later
Hopefully this means that we can use XenDesktop 7.1 against New gen VMs, and hopefully 7.1 also includes provisioning against Azure it might be….

#azure, #sysctr, #windows-2012, #xendesktop
